Form Tie System
NOVOCON manufactures and supplies full range of Form Tie System ranging
from high strength for heavy concrete work to low strength one for the lighter.
NOVOCON
Form Tie System

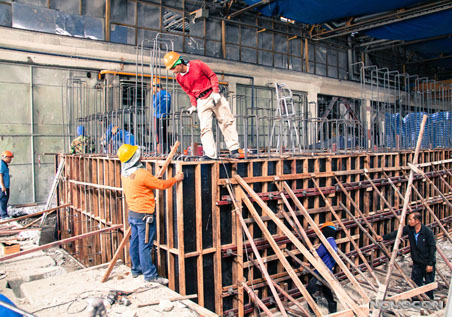

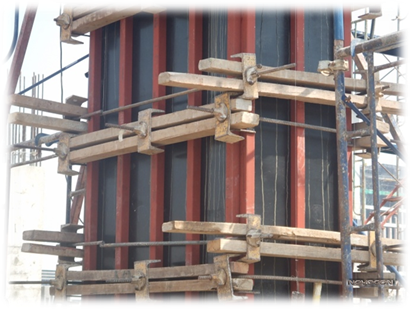

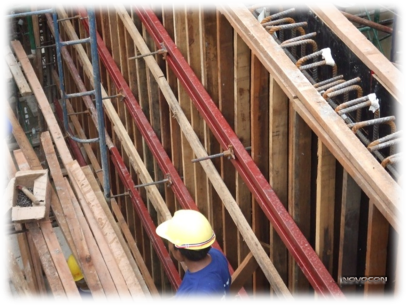

Applicable to all kinds of concrete works including retaining wall, concrete wall, liquid tank, beam, column, pier, treatment plant, manhole, pre-cast concrete elements and all kinds of concrete works.
NOVOCON with Full Range of
Form Tie System
Various form tie and accessories available with all grades and types, including:
Tie Rods, Wing Nut, Watertight Coupling, Hex Nut, Lock Nut, Coupling, Steel Cone, Shear Cone, Spring Clamp, Wedge Clamp, Plastic Cone, Plastic Spacer, etc.
They are available for tie rod diameter 12/14, 15/17 and 20/23 mm. The bigger ones are optional.
Top Quality and Services
• QA with Test Certificate
• Available stock
• Cut-to-order service
• Fast delivery service
Range of Product
Product Description
Size
Material/Property

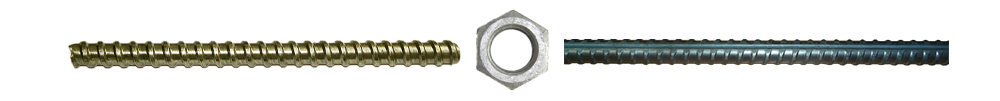

Hight-Strenght Group, Dywidag Thread

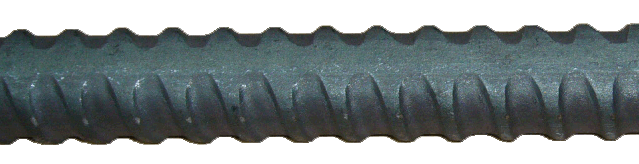

Tie Rod FT15
(Continuous Thread)
Yield load: 130 kN
Tensile load: 150 kN
Weldable
Thread size: 15/17 mm.
Standard length: 6.0 m.
or cut to order
Tie Rod HS15
(Self-Cleaning)
Thread size: 15/17 mm.
Standard length: 6.0 m.
or cut to order
Yield load: 156 kN
Tensile load: 190 kN
ASTM A722
Yield load: 278 kN
Tensile load: 339 kN
ASTM A722
Tie Rod HS20
(Self-Cleaning)

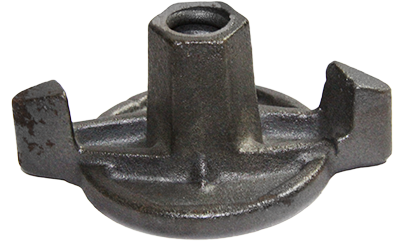

Wing Nut B35
(for Tie Rod FT15, HS15)
Tensile load: 190 kN
Cast Iron FCD45
Black finished
Thread size: 20/23 mm.
Standard length: 6.0 m.
or cut to order
Thread size: 15/17 mm.
Hexagon: 27 mm.
Base/ Wing: 35/110 mm.
Wing Nut B60
(for Tie Rod FT15, HS15)
Tensile load: 190 kN
Cast Iron FCD45
Black finished
Thread size: 15/17 mm.
Hexagon: 27 mm.
Base/ Wing: 60/110 mm
Wing Nut B100
(for Tie Rod FT15, HS15)
Thread size: 15/17 mm.
Hexagon: 27 mm.
Base: 100 mm
Tensile load: 190 kN
Cast Iron FCD45
Black finished
Tensile load: 339 kN
Cast Iron FCD45
Black finished
Wing Nut D20
(for Tie Rod HS20)
Thread size: 20/23 mm.
Hexagon: 38 mm.
Base/ Wing: 45/110 mm
Spherical Nut D20
(for Tie Rod HS20)
Thread size: 20/23 mm.
Hexagon: 35 mm.
OD: 42 mm
Tensile load: 339 kN
Cast Iron FCD45
Black finished
Tensile load: 190 kN
Cast Iron FCD45
Black finished
Water Stop D15D
(for Tie Rod FT15, HS15)
Length: 108 mm.
OD: 27 mm.
Disc: 65 mm.
Check Nut CN15
(for Tie Rod FT15, HS15)
Thread size: 15/17 mm.
Hexagon: 30 mm.
Length: 25 mm.
Tensile load: 90 kN
Cast Iron FCD45
Tensile load: 190 kN
Cast Iron FCD45
Hex Nut HN15
(for Tie Rod FT15, HS15)
Thread size: 15/17 mm.
Hexagon: 30 mm.
Length: 50 mm.
Weldable Nut WN15
(for Tie Rod FT15, HS15)
Thread size: 15/17 mm.
Hexagon: 30 mm.
Length: 50 mm.
Tensile load: 190 kN
Carbon Steel
Weldable
Tensile load: 339 kN
Cast Iron FCD45
Black finished
Hex Nut HN20
(for Tie Rod HS20)
Thread size: 20/23 mm.
Hexagon: 36 mm.
Length: 65 mm.
Weldable Hex Nut D20
(for Tie Rod HS20)
Thread size: 20/23 mm.
Hexagon: 38 mm.
Length: 65 mm.
Tensile load: 339 kN
Carbon Steel
Weldable
Tensile load: 190 kN
Carbon Steel
Weldable
Coupler D15
(for Tie Rod FT15, HS15)
Thread size: 15/17 mm.
OD: 30 mm.
Length: 90 mm.
Coupler D20
(for Tie Rod HS20)
Thread size: 20/23 mm.
Hexagon: 36 mm.
Length: 142 mm.
Tensile load: 339 kN
Carbon Steel
Weldable
Medium-Strength Group
Tie Rod NV15
(Self-Cleaning)
Yield load: 104 kN
Tensile load: 124 kN
Weldable
Thread size: 15/17 mm. (LH)
Standard length: 6.0 m.
or cut to order
Wing Nut NV15
(for Tie Rod NV15)
Thread size: 15/17 mm. (LH)
Hexagon: 25 mm.
Base: 60/100 mm
Tensile load: 110 kN
Cast Iron FCD45
Watertight Coupling NV15
(for Tie Rod NV15)
Tensile load: 110 kN
Cast Iron FCD45
Length: 95 mm.
OD: 30 mm.
Disc: 60 mm.
Hex Nut NV15
(for Tie Rod NV15)
Thread size: 15/17 mm. (LH)
Hexagon: 27 mm.
Length: 40 mm.
Tensile load: 124 kN
Cast Iron FCD45
Weldable Nut NV15
(for Tie Rod NV15)
Tensile load: 124 kN
Carbon Steel
Thread size: 15/17 mm. (LH)
Hexagon: 27 mm.
Length: 40 mm.
Low-Strength Group
Tie Rod LS12
Thread size: 10/12 mm.
Standard length: 3.0 m.
or cut to order
Yield load: 22 kN
Tensile load: 32 kN
Weldable
Yield load: 70 kN
Tensile load: 90 kN
Weldable
Tie Rod LS15
Thread size: 15/17 mm.
Standard length: 6.0 m.
or cut to order
Nut LS12
(for Tie Rod LS12)
Thread size: 12/14 mm.
Hexagon: 22 mm.
Length: 25 mm.
Tensile load: 40 kN
Carbon Steel
Weldable
Nut LS15
(for Tie Rod LS15)
Tensile load: 90 kN
Carbon Steel
Weldable
Thread size: 15/17 mm.
Hexagon: 30 mm.
Length: 40 mm.
Wing Nut LS12
(for Tie Rod LS12)
Thread size: 10/12 mm.
Hexagon: 21 mm.
Base: 50/72 mm
Tensile load: 40 kN
Cast Iron FCD45
Tensile load: 90 kN
Cast Iron FCD45
Wing Nut LS15
(for Tie Rod LS15)
Thread size: 15/17 mm.
Hexagon: 29 mm.
Base/Wing: 75/110 mm
Watertight Coupling LS15DT
(for Tie Rod LS15)
Length: 95 mm.
OD: 30 mm.
Disc: 60 mm.
Tensile load: 90 kN
Cast Iron FCD45
Tensile load: 90 kN
Cast Iron FCD45
Water Stop LS15D
(for Tie Rod LS15)
Length: 118 mm.
OD: 30 mm.
Disc: 63 mm.
Form-work Accessories
Spring Clamp
(for rebar form tie)
for rebar Φ6-12 mm.
Mild Steel with
High durable spring
Paint or Zinc coated
Cast Iron FCD45
Paint coated
Wedge Clamp
(for rebar form tie)
for rebar Φ6-12 mm.
Spring Tensioner
(for Spring Clamp)
for rebar Φ6-12 mm.
Mild Steel
Zinc coated
Cast Iron Frame
w/ carbon steel gear
Paint coated
Wedge Tensioner
(for Wedge Clamp)
for rebar Φ6-12 mm.
Steel Cone-Bail Type
(for Tie Rod FT15, HS15)
L = 75 mm.
L = 100 mm.
L = 125 mm.
Carbon Steel
Zinc coated
Carbon Steel SS400
or ASTM A36
Plain or galvanized
Flat Steel Plate
(Square Washer)
100x100x6, 100x100x8 mm
120x120x8, 120x120x10,
150x150x10, 150x150x12
Plastic Cone
(Form-work Spacer)
(for Tie Rod Φ15/17 mm.)
Length: 90-250 mm.
ID: 18 mm.
OD: 38-60 mm.
PVC
PVC
Plastic Cap 22 NA
(for Tie Rod Φ15/17 mm.)
Length: 27 mm.
ID: 22 mm.
Base: 43 mm.
Wheel Spacer
(for vertical rebar)
for concrete covering
20-50 mm.
for rebar Φ6-25 mm.
PVC
Concrete Spacer
(for horizonal rebar)
PVC
for concrete covering
20-70 mm.
for rebar Φ6-25 mm.
Safety Cap
(for rebar end protection)
Rebar Φ6-32 mm.
PVC
